CAT40 Shrink Fit Tool Holders Machine Shrink Tool

  • CAT40 shrink fit tool holders machine
  • Works on all CAT 40 machines
  • For  1/8,1/4,3/8,1/2, 5/8,3/4 and 1″
  • All critical surfaces precision ground
  • Made from alloy steel hardened to 54 – 56rc
  • Balanced to G2.5 at 25,000 RPMs
  • Gage length is ( from 0.5″ to 10 inches)
  • Concentricity is less than .0001 at collet face

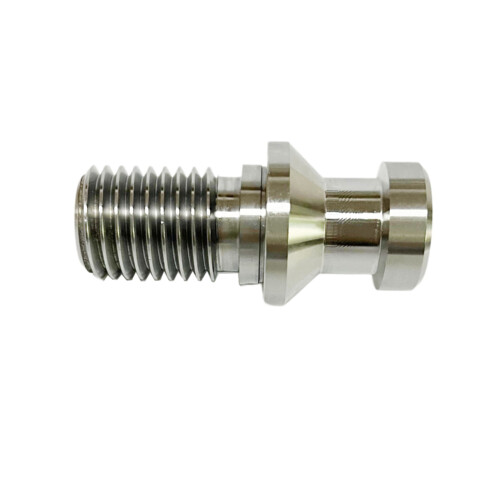

  • Rear thread for pull stud is 5/8-11
  • Color Silver Coated: never rusty ever
Inquiry Now
Category:

Description

                CAT40 Shrink Fit Tool Holders Shrink Fit chuck



Why choose to shrink Fit tool holders
   1. Fast loading and unloading of tools, heating by heat shrinking machine, with 13KW high power can complete the tool installation and clamping within 5 seconds,
cooling only takes 30 seconds, unique water cooling device can prevent the accuracy of the tool holder from deteriorating.
   2. High precision and small run out. The tool mounting part does not have the parts such as the nut and collet required by the collet chuck.
It is simple and effective, the cold shrink clamping is strong and stable, the tool deflection is less than or equal to 3μ,
the tool wear is reduced, and the high precision during high-speed processing is guaranteed.
    3. The crown is small and widely used. The ultra-thin tip part and abundant shape of the shank can be widely used for
high-speed high-precision machining and deep hole machining.
   4, simple and efficient, long life. Hot loading and unloading operation, even if the same holder is hot-loaded more than 2000 times,
the accuracy will not change, the stability is stable and reliable, and the service life is long.



        CAT50 Shrink Fit Tool Holders

CAT40 Product NO. CAT40 Shrink Fit Tool Holder
Insulation material Hardened Alloy Steel
Hardness HRC 55
Run Out (TIR) <0.0001″ or 0.003mm
Color Silver Coated
 Standard Spindle  CAT40 Taper
Stop Screw Threaded for internal stop screw included
Manufacture IGSTOOL



Application Guide





CAT40 Shrink Fit Tool Holder Available

Each shrink fit tool holder made in the standard of G2.5 25,000 rpm.

        For the shrink fit tool holder hole with h6 tolerance, Using HA to DIN6535 and Form A to DIN 1835-1,
